ABS RFID Token Tags can work on metal surface with anti-metal layer on it, also can be attached to goods surface by adhesive layer. There are abundant size options to suitable customer’s unique application.
ABS RFID Token Tags family
 |  |  |  |  |  |

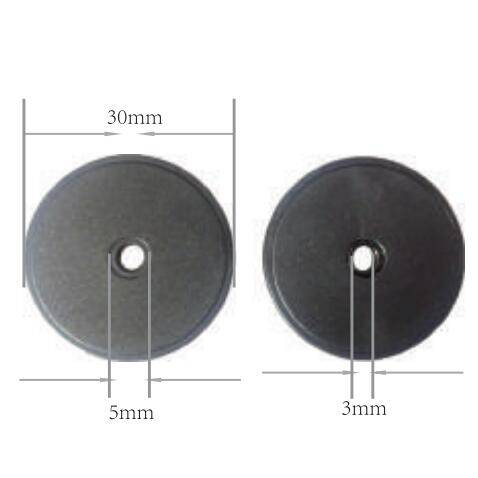

| JYL-ADT12 D12 * T3.5mm | JYL-ADT20 D20 * T2.3mm | JYL-ADT22 D22 * T3.4mm | JYL-ADT25 D25* H3*T3.3mm | JYL-ADT30A D30 * H3 * T3mm | JYL-ADT30B D30 * H5 * T5mm |
 |  |  |  | |  |

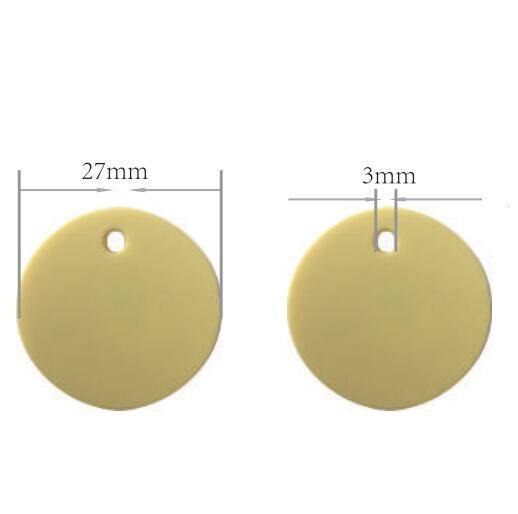

| JYL-ADT27 D27*H3*T3.25mm | JYL-ADT32 D32*H3*T3mm | JYL-ADT35 D35*H4*T4mm | JYL-ADT40 D40*H5.5*T5mm | JYL-ADT50 D50*H5.5*T5mm | JYL-ADT52 D52*H5.7*T5mm |
IC options：
LF 125KHz :
– EM4200, TK4001; T5577; EM4305; Hitag1, Hitag2, Hitag S256, etc
HF 13.56Mhz :
– ISO14443A: MIFARE Classic®, MIFARE® DESFire®, MIFARE Plus®, MIFARE Ultralight®, Fudan FM11RF08, etc.
– ISO18092: NTAG® 213, NTAG® 215, NTAG® 216, Topaz512, etc.
– ISO15693: NXP ICODE® SLIX, TI Tag it HF-I, ST LRI, etc.
UHF 840-960Mhz :
– Alien Higgs, Monza 3, Monza 4D, Monza 4QT, Monza R6, Monza R6-P, Impinj M730 ,Impinj M750 etc.
JYL-Tech Epoxy Mini RFID Tag
JYL-tech also could produce the Epoxy token tag, the surface covered by epoxy, can be with anti-metal layer and adhersive layer backing .
Epoxy Mini RFID tag can also work on metal surface with anti-metal layer on it, also can be attached to goods surface by adhesive layer. Its mini size widely use for tracking system or automatic production systems etc.
JYL-Tech Epoxy Mini RFID Tag Specification :
| Item No. | JYL-EMT15 |
| Material: | ABS + Epoxy |
| Dimension: | Round 15mm |
| Thickness: | 3mm |
| Frequency: | LF/HF |
| Craft: | Laser engraving |
| Options: | Adhersive / Anti-Metal Layer / Programmable |
JYL-Tech can customize ABS RFID Toke to meet your unique requirements for chip type, size, programming and materials. Contact us to learn more about JYL-Tech full line of solutions for various RFID Token Tags.
